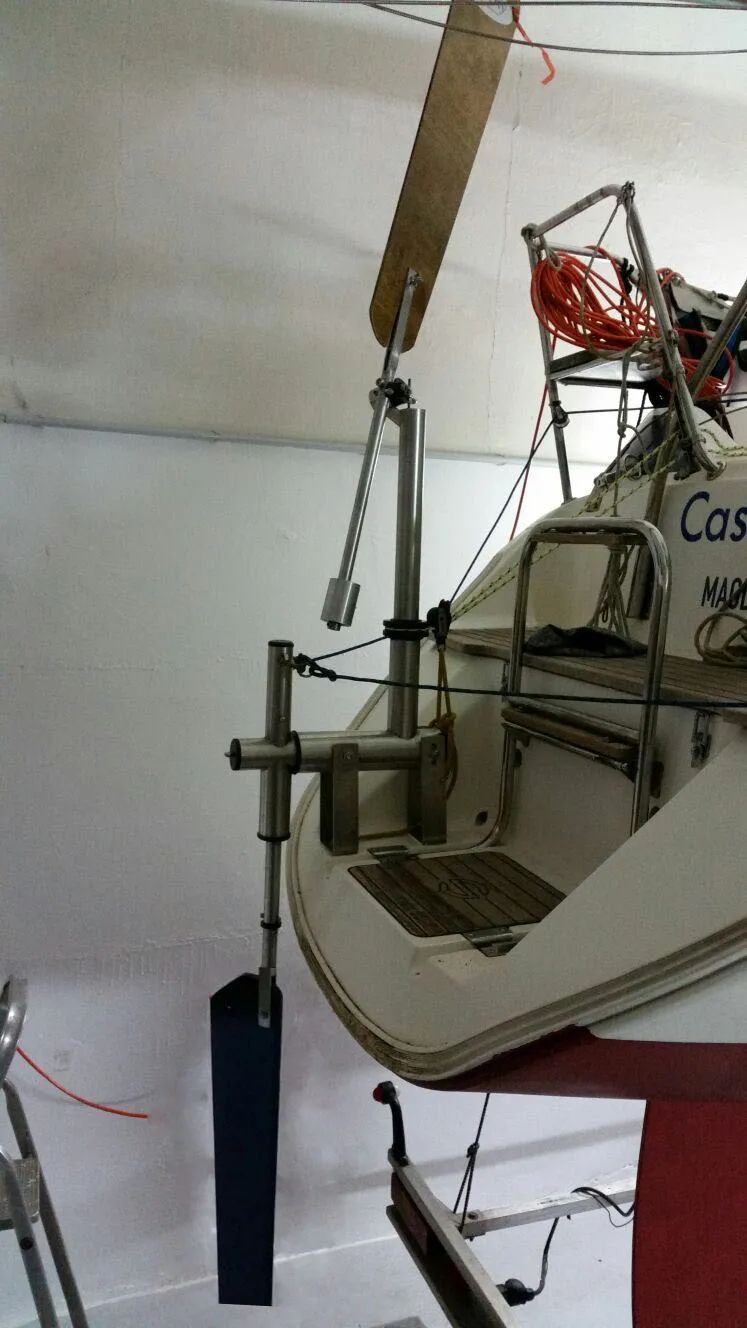

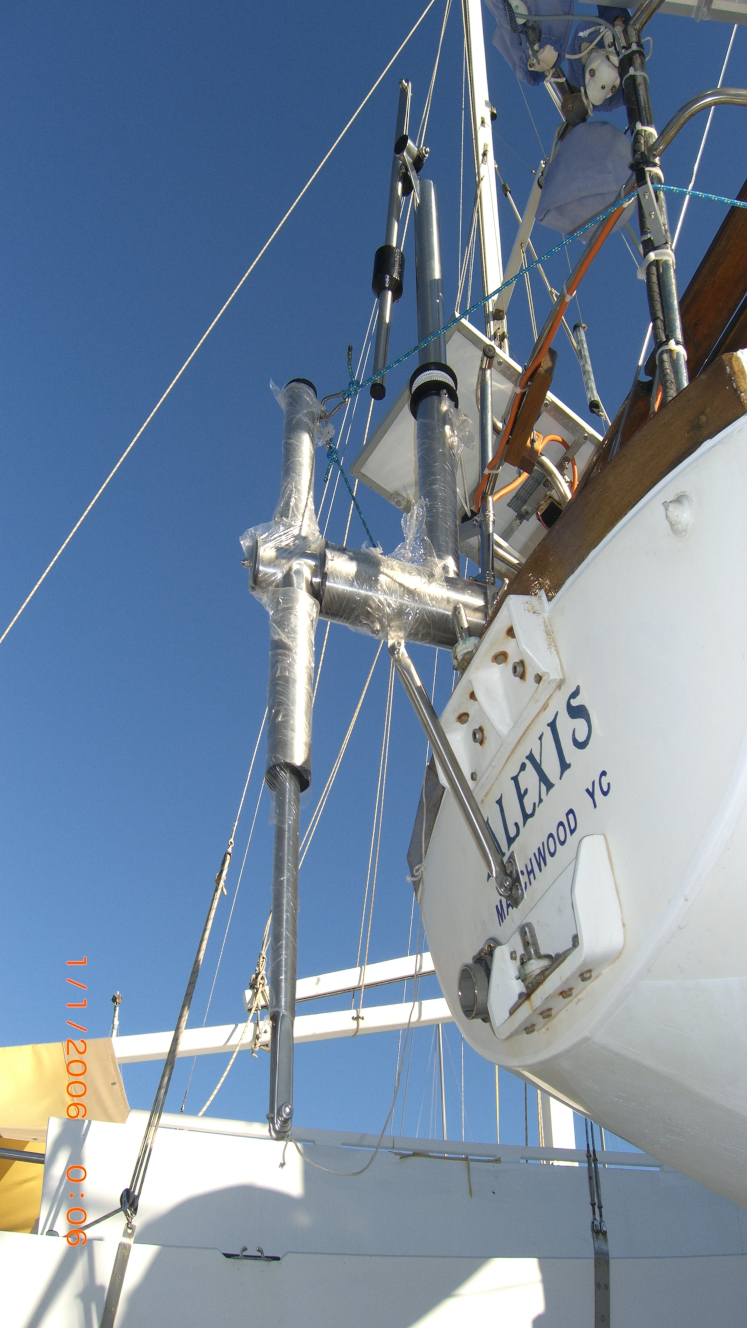

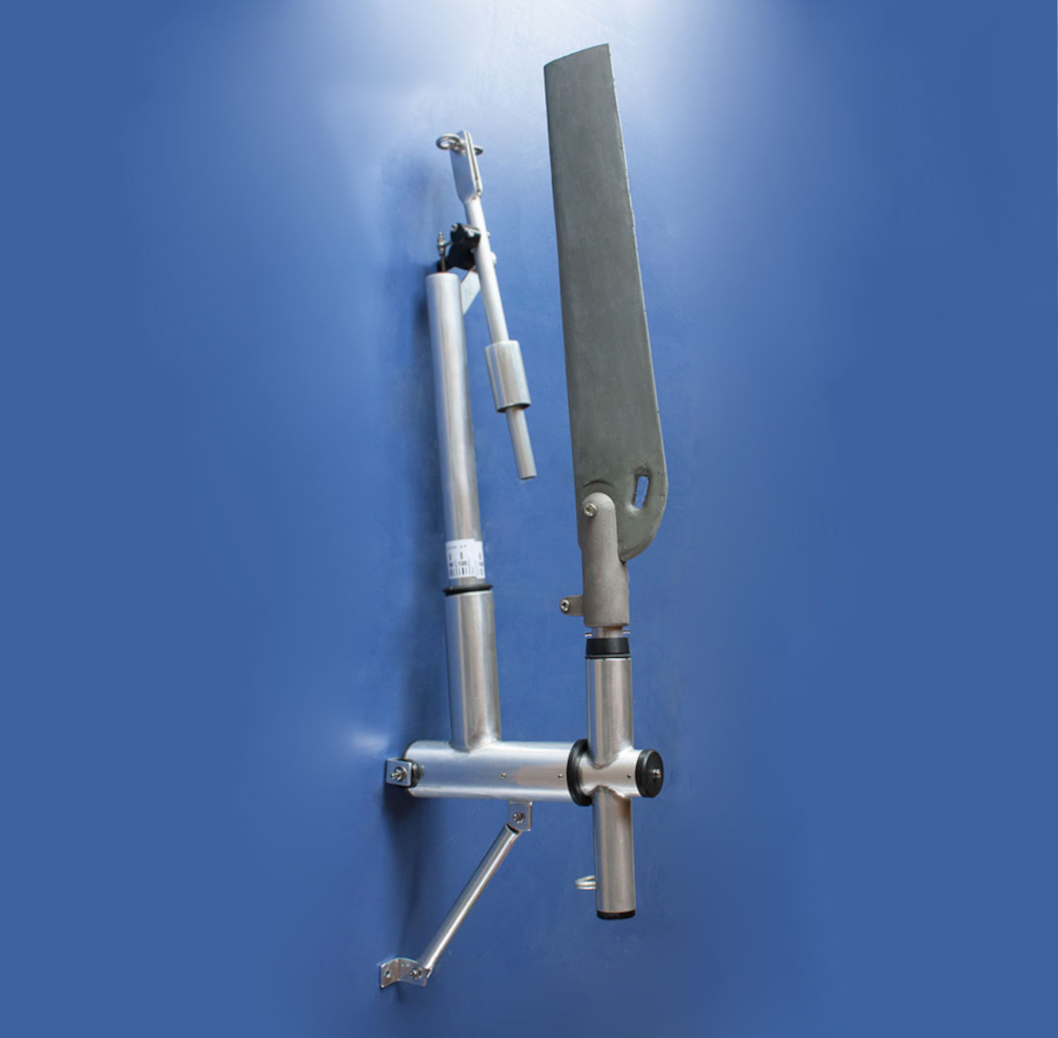

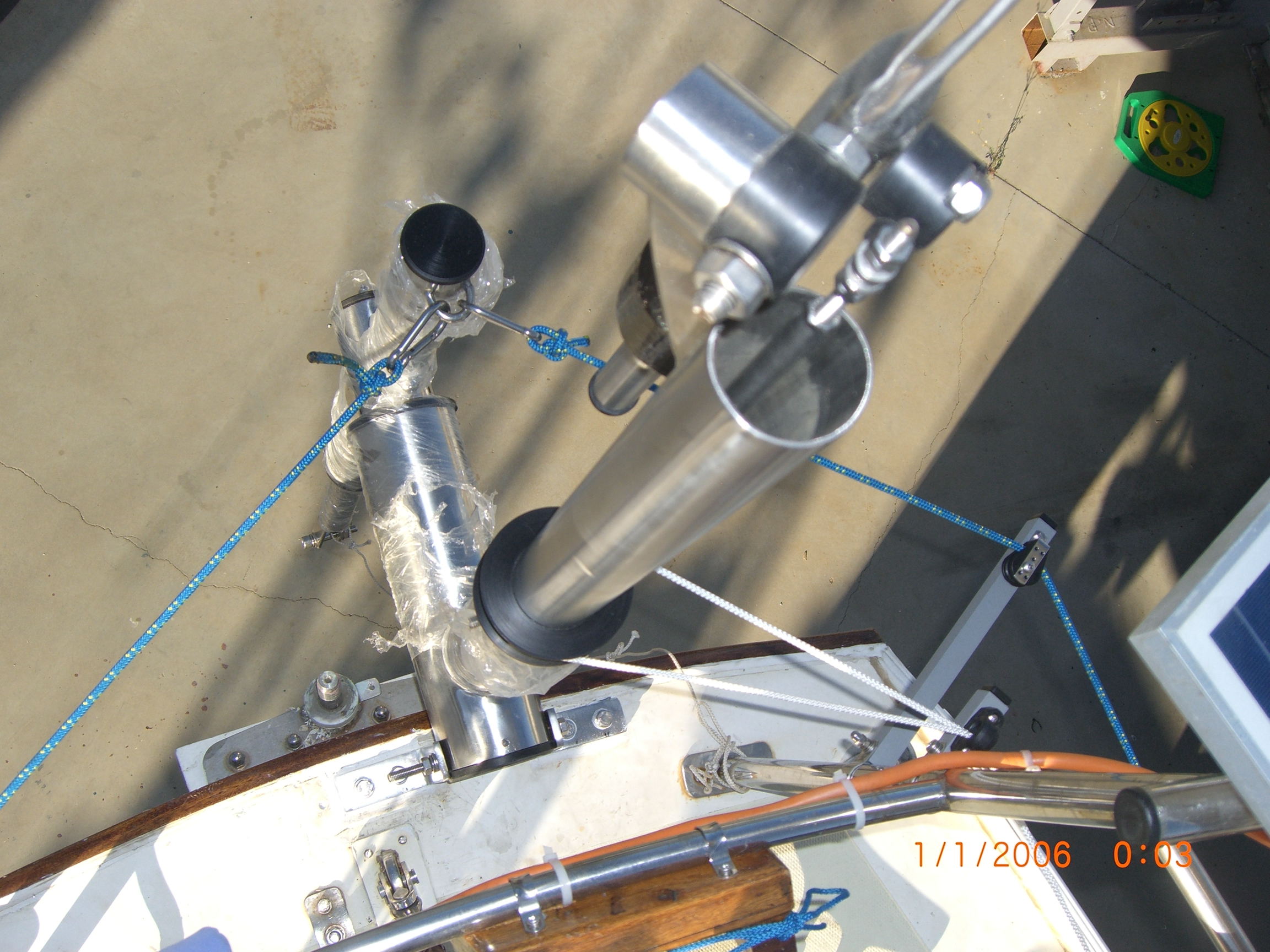

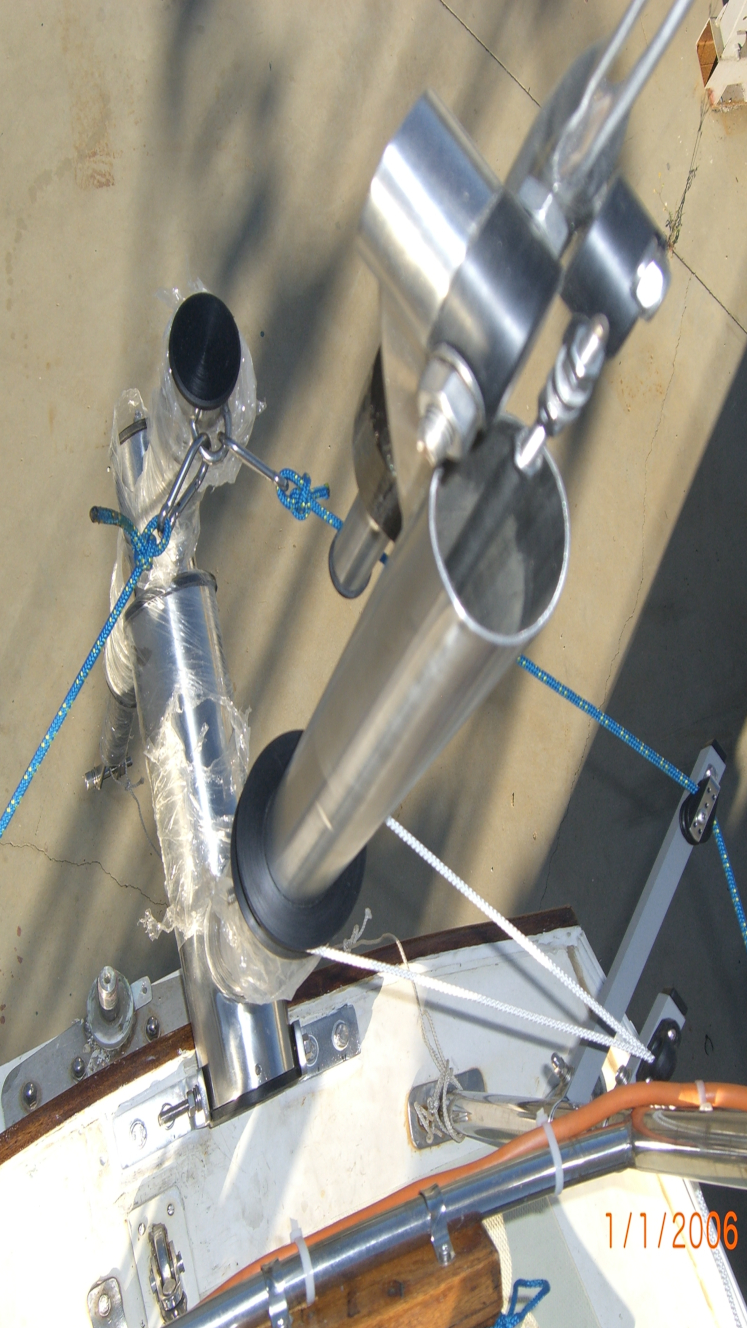

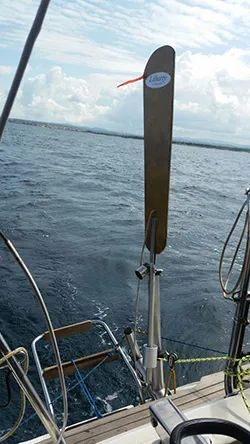

Advantages of our L 360
Self Steering Wind Vane
" Adjustable vane (for strong or light wind)
" Vane fixing in central position
" Adjustable power transmission
" Easy to start and stop operating
" Lift up swinging rudder, 180 degrees
" Protection against overloading
"Autopilot option: a pin fitting for an Autohelm or Simrad cockpit autopilot is provided as standard on the windvane arm
" Detachable rudder
Adaptability
"Length of air vane mast, pendulum shaft and tiller arm customised
to fit each individual boat.
Materials
" Stainless Steel
" POM bearings.
" Servo rudder, rotomolded polyethylene
" 6mm polycarbonate vane
Weight
ca. 10 Kilos
Bearings
"We use sliding bearings: they need no upkeep and run
softly.
Demand for spare bearings is almost man-existing!
LOA
Series L 360 : up to 12.6 m / 42 ft
Displacement
Series L 360: up to 12000 kg
