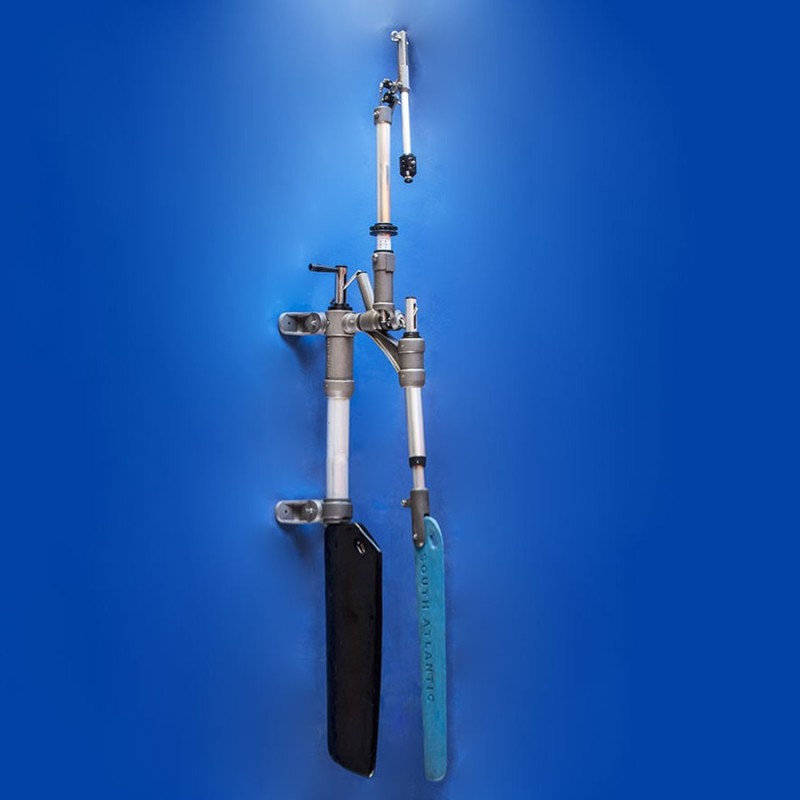

South Atlantic Self Steering Windvane S 600 - Integrated Emergency Rudder
search
  • South Atlantic Self Steering Windvane S 600 - Integrated Emergency Rudder
  • South Atlantic Self Steering Windvane S 600 - Integrated Emergency Rudder
  • South Atlantic Self Steering Windvane S 600 - Integrated Emergency Rudder
  • South Atlantic Self Steering Windvane S 600 - Integrated Emergency Rudder
  • South Atlantic Self Steering Windvane S 600 - Integrated Emergency Rudder
  • South Atlantic Self Steering Windvane S 600 - Integrated Emergency Rudder
  • South Atlantic Self Steering Windvane S 600 - Integrated Emergency Rudder
  • South Atlantic Self Steering Windvane S 600 - Integrated Emergency Rudder
  • South Atlantic Self Steering Windvane S 600 - Integrated Emergency Rudder
  • South Atlantic Self Steering Windvane S 600 - Integrated Emergency Rudder
  • South Atlantic Self Steering Windvane S 600 - Integrated Emergency Rudder
  • South Atlantic Self Steering Windvane S 600 - Integrated Emergency Rudder
  • South Atlantic Self Steering Windvane S 600 - Integrated Emergency Rudder
  • South Atlantic Self Steering Windvane S 600 - Integrated Emergency Rudder
  • South Atlantic Self Steering Windvane S 600 - Integrated Emergency Rudder
  • South Atlantic Self Steering Windvane S 600 - Integrated Emergency Rudder
  • South Atlantic Self Steering Windvane S 600 - Integrated Emergency Rudder
  • South Atlantic Self Steering Windvane S 600 - Integrated Emergency Rudder
  • South Atlantic Self Steering Windvane S 600 - Integrated Emergency Rudder

South Atlantic S 600

€4,200.00
No tax

S-600: up to 18 m / 60 ft  / up to 20.000 kg

Options:

S 600 Basic includes:
* 1 Air vane.
* 1 Serevo Paddle
* Manual

S 600 Offshore kit includes:
* 2 Servo Paddle
* 2 Air vane
* Tools (Allem keys)
* User guide




S 600 Offshore Plus kit includes:
* 2 Servo Paddles
* 2 Air-vanes
* Bearings set (body and shaft)
* Tools (Allen keys)
* User guide


Off-Shore Kit: Basic
S600 Rudder length: Standard Rudder
Heavier Disp.:
Quantity

  Security policy

(edit with the Customer Reassurance module)

  Delivery policy

(edit with the Customer Reassurance module)

  Return policy

(edit with the Customer Reassurance module)

S 600 Series: Servo-Auxiliary Self-Steering

The S 600 is a high-performance windvane system designed for larger vessels, combining the sensitivity of a servo-pendulum with the power of a dedicated auxiliary rudder.

Core Advantages

  • Mechanical Efficiency: The auxiliary rudder provides maximum leverage for course correction from the stern, allowing the main rudder to be locked to counteract weather helm.

  • Modular Design: The entire servo unit can be removed in seconds. Both the servo and auxiliary rudders feature a lift-up function for easy docking or protection.

  • Compact Integration: A streamlined design that minimizes the increase in the vessel’s overall length (LOA).

  • Flexible Installation: Engineered for versatile mounting, including off-center (offset) positions to accommodate various transom layouts.

Technical Features

  • Adaptability: Fully customizable lengths for the air vane mast, pendulum shaft, and tiller arm to fit each specific boat.

  • Integrated Autopilot Support: Includes a standard pin fitting for Autohelm or Simrad cockpit autopilots on the windvane arm.

  • Advanced Controls: Adjustable vane for light or strong winds, central fixing position, and variable power transmission.

  • Safety & Protection: Built-in overload protection and a swinging rudder system (pm 170 circ).

Material Specifications

  • Chassis: 100% seawater-resistant aluminum alloy.

  • Bearings: High-durability POM sliding bearings; maintenance-free and exceptionally soft-running.

  • Vane: 6 mm high-grade polycarbonate.

  • Servo Rudder: Robust wood construction with a protective bituminous coating.

Performance Data

Specification Serie S 600 G Serie S 600 G II
Max Vessel LOA < 15 m (50 ft) < 18 m (60 ft)
Max Displacement < 15,000 kg < 20,000 kg
System Weight Approx. 40 - 55 kg Approx. 40 - 55 kg

*The price of the wind vane includes the user manual corresponding to the selected model and accessories. There is no need to purchase the manual separately.
